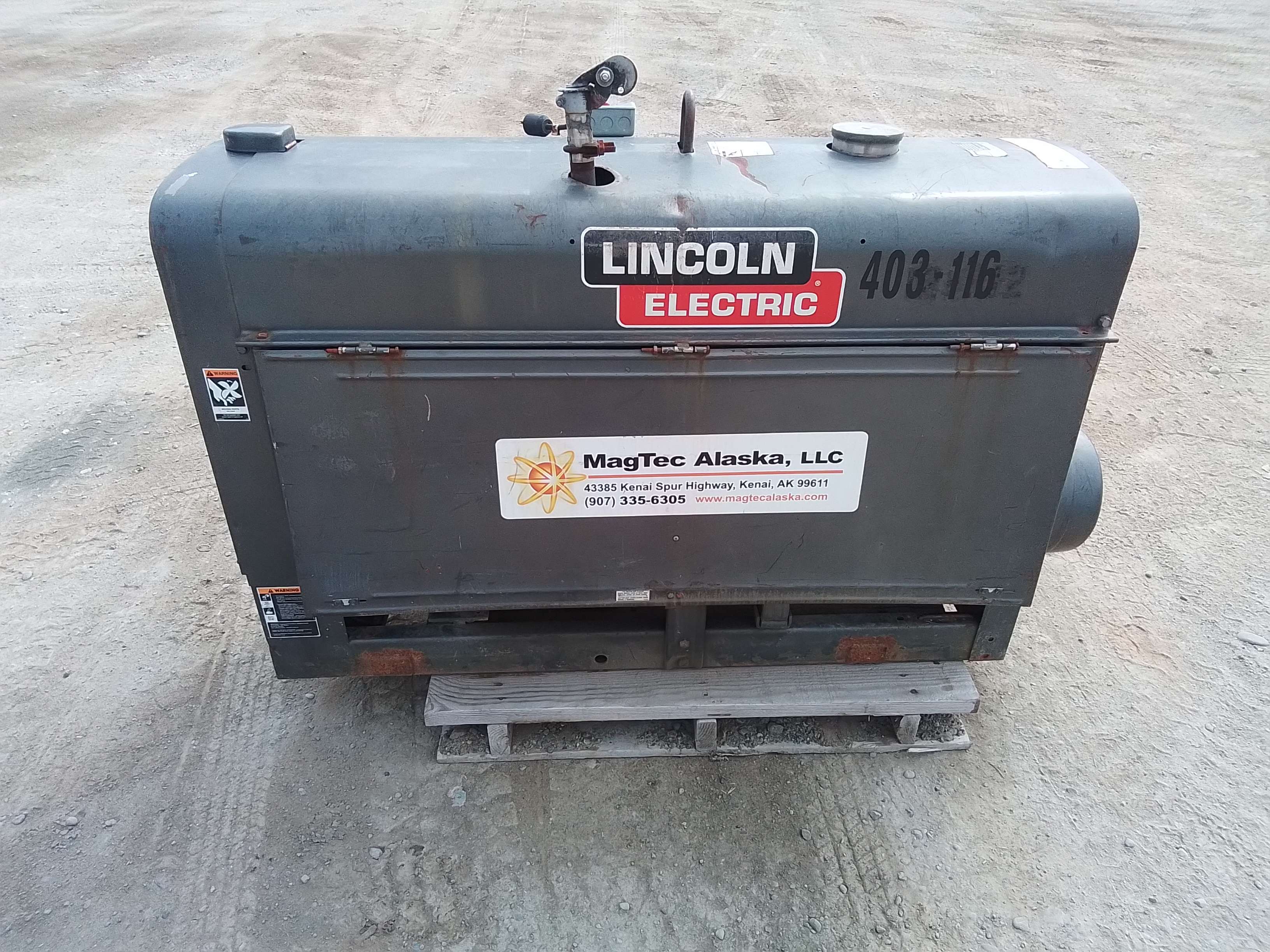

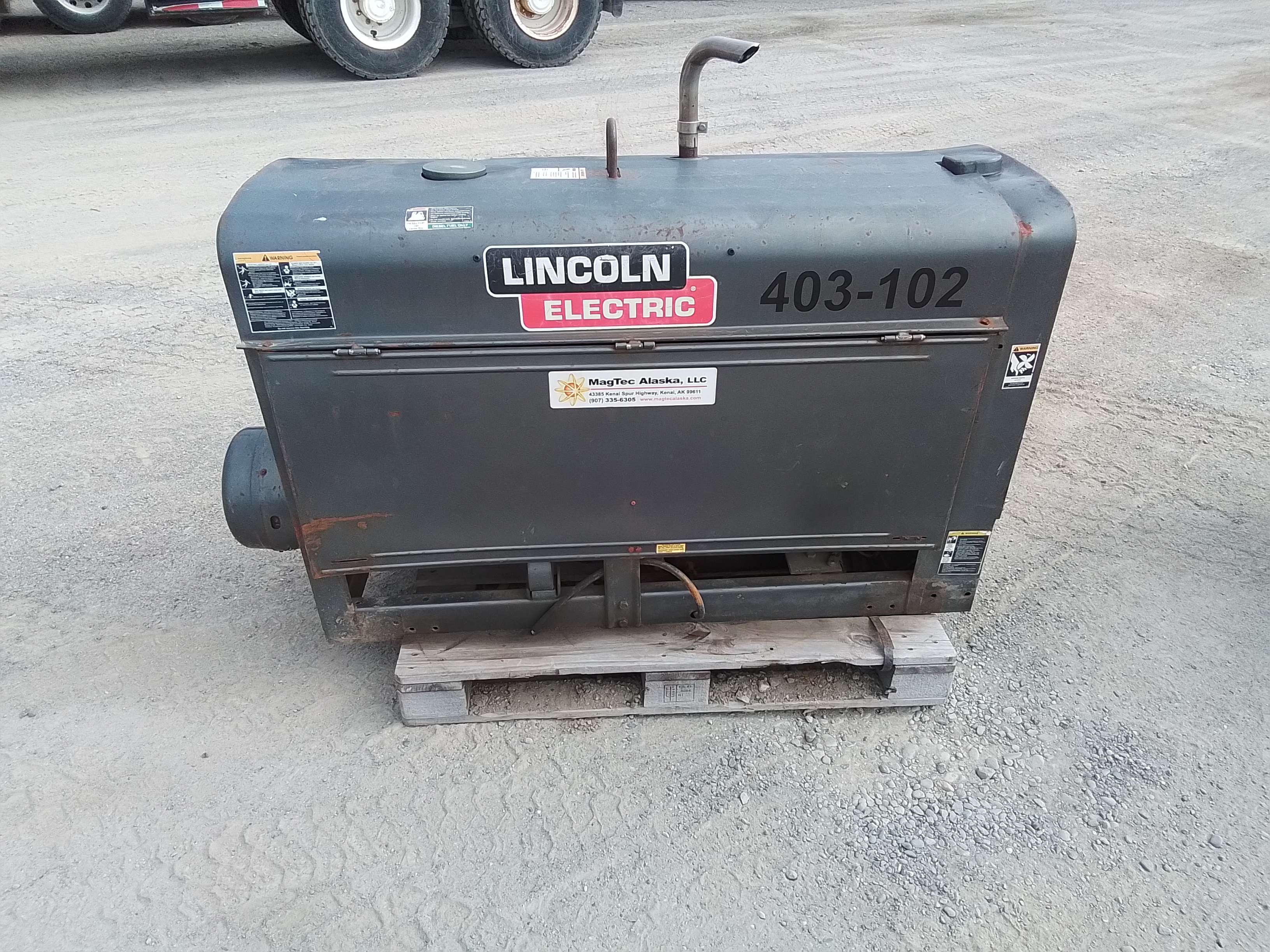

Lincoln Welder Classic 300D,
The Classic 300D includes 3000 watts of AC generator power to run grinders and lights. 300 amps @ 60% duty cycle. Welds up to 7/32" (5.6mm) Fleetweld® 5P+ cellulosic and Excalibur® low hydrogen electrode.

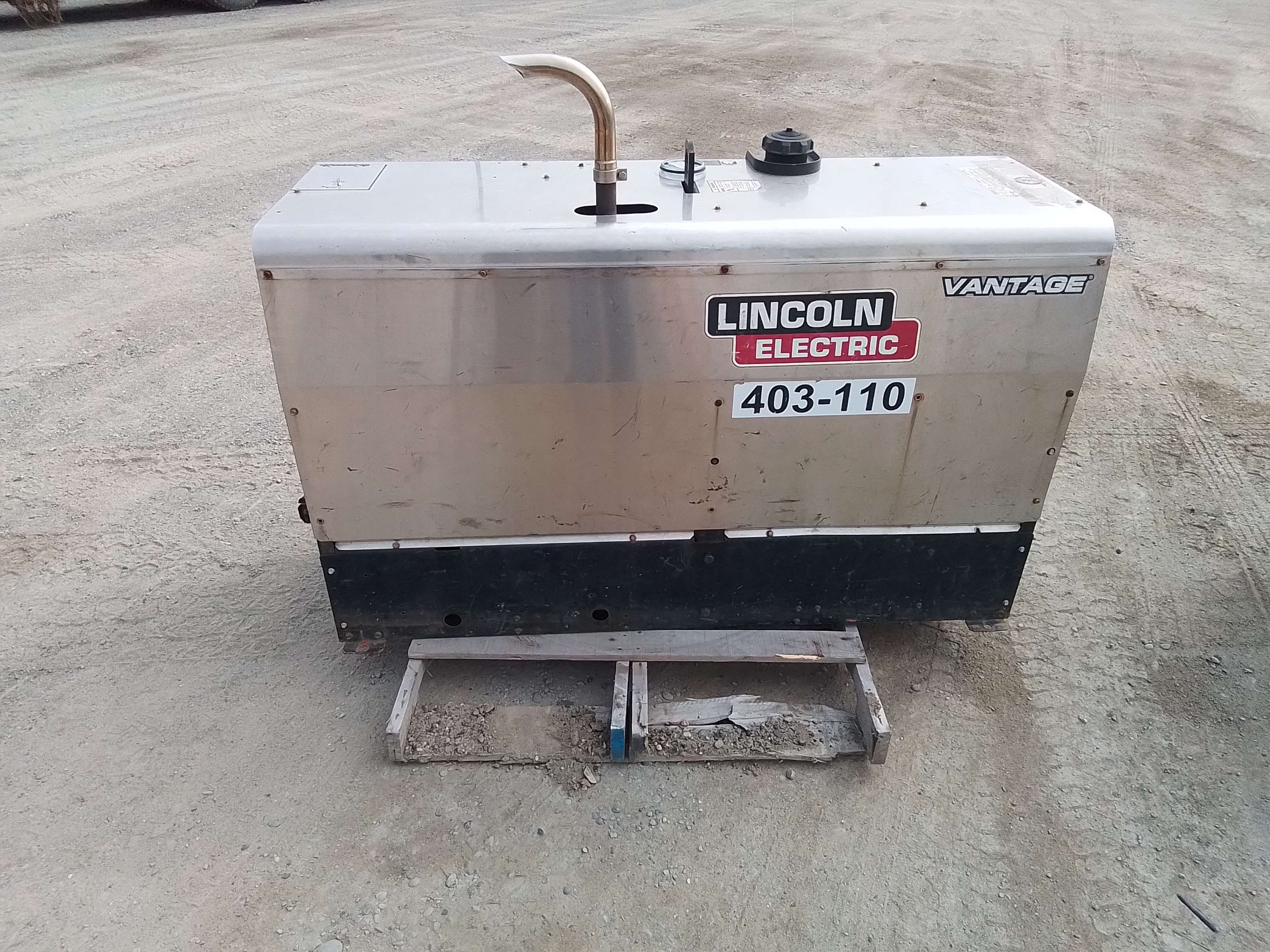

BrandLINCOLN ELECTRICManufacturer Part NumberK2409-5Welder SeriesVantage 322ProcessAir Carbon Arc Cutting and Gouging (CAC-A); Flux-Cored Welding (FCAW); MIG Welding (GMAW); Stick Welding (SMAW); TIG Welding (GTAW)PolarityDCPhaseSingle-/Three-PhaseWelding Power Source TypeCC/CVRated Output @ Duty Cycle (Stick)280 A @ 32 V, 100%Maximum Amperage (Stick)300 AMinimum Amperage (Stick)10 ARated Output @ Duty Cycle (TIG)280 A @ 32 V, 100%Maximum Amperage (TIG)300 AMinimum Amperage (TIG)10 ATIG Arc Start FeatureLift Arc StartHorsepower22 hpPeak Auxiliary Power12,500 WContinuous Auxiliary Power11,000 WGenerator Fuel TypeDieselFuel Tank Capacity20 galOil Capacity6-3/8 qtEngine BrandKubotaEngine ModelKubota V1505Generator Outlets
14-50R 120/240V Receptacle
15-50R 240V Receptacle
5-20R 120V GFCI Receptacle (2)
5-20R 120V Receptacle (4)
Circuit BreakerYesStart TypeElectricRemote Connection Type6-Pin (Lincoln); 14-Pin (Lincoln)Open Circuit Voltage60 V DCColorStainless SteelWeight1,035 lbUNSPSC23171514Country of OriginUSA (subject to change)

Diesel Engine Driven Welder/Generator
MAVERICK® 325X
The Maverick 325X diesel engine driven welder/generator provides the perfect combination of size, performance, and innovation to deliver the next-generation of compact diesel welders.
Compact Power – Plenty of jobsite power with 325 amps of welding output and 10 kW of clean, single-phase auxiliary power.
Optimized Performance – A multi-process workhorse with specialized stick modes.
Greater Machine Control – Durable, 4.6 in. digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
CrossLinc® Enabled – Change welder parameters at the arc without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
Variable Engine RPM – Automatically adjusts engine speed to reduce fuel consumption and engine noise.
Auto-Stop/Start Technology – Save on fuel and avoid excess idling and engine wear.
Rated Output
@104°F (40°C)
*IEC Rating -325A / 33V / 100%,
Output Range

*Stick / Pipe:
35 - 400 AmpsRange
AC Generator
Auxiliary
Power Single Phase:
*10 kW
Continuous,
11.5 kW Peak,
120V/240V @
60 Hz
Auxiliary
Receptacles
*NEMA 5-20R
(120V / 20A / 1~)
NEMA 14-50R
(120/240V / 50A / 1~)
Dimensions
H x W x L
in (mm)
*30.4 x 21.3 x 52.0
(772 x 540 x 1321)
To Top of Exhaust
Pipe: 34.2 (870)
Weight
lb (kg)(3)
*750
(340)
Engine Model
*Kubota D902(4)
Tier 4 Final Compliant

Diesel Engine Driven Welder/Generator
MAVERICK® 325X
The Maverick 325X diesel engine driven welder/generator provides the perfect combination of size, performance, and innovation to deliver the next-generation of compact diesel welders.
Compact Power – Plenty of jobsite power with 325 amps of welding output and 10 kW of clean, single-phase auxiliary power.
Optimized Performance – A multi-process workhorse with specialized stick modes.
Greater Machine Control – Durable, 4.6 in. digital display for full machine control - including process setup, maintenance reminders, and PIN authorization.
CrossLinc® Enabled – Change welder parameters at the arc without an additional control cable - helping to increase productivity, promote safety, and improve weld quality.
Variable Engine RPM – Automatically adjusts engine speed to reduce fuel consumption and engine noise.
Auto-Stop/Start Technology – Save on fuel and avoid excess idling and engine wear.
Rated Output
@104°F (40°C)
*IEC Rating -325A / 33V / 100%,
Output Range

*Stick / Pipe:
35 - 400 AmpsRange
AC Generator
Auxiliary
Power Single Phase:
*10 kW
Continuous,
11.5 kW Peak,
120V/240V @
60 Hz
Auxiliary
Receptacles
*NEMA 5-20R
(120V / 20A / 1~)
NEMA 14-50R
(120/240V / 50A / 1~)
Dimensions
H x W x L
in (mm)
*30.4 x 21.3 x 52.0
(772 x 540 x 1321)
To Top of Exhaust
Pipe: 34.2 (870)
Weight
lb (kg)(3)
*750
(340)
Engine Model
*Kubota D902(4)
Tier 4 Final Compliant
